Deskripsi

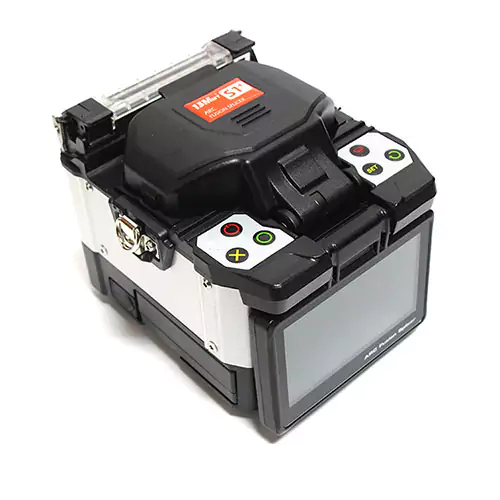

13mmt S1+
Specifications 13MMTS1+
- Appicable : Fibers SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
- Compatible : Fiber/Cable 0.25-3.0mm/Indoor Cable
Cleaved Length - Coating Diameter : 0.125-1mm/Cleave length:5-16mm
- Splicing Mode : Multiple Splicing Modes
- Typical Splice : Loss 0.01-0.05db
- Return Loss : 60db
- Lighting : 3 powerful white LED and illuminated keypads
- Splicing : Time 6-8 seconds
- Estimated Splice Loss : Available
- Protection Sleeve : Length 20-60mm
- Heating Mode : Multi Heating Modes
- Heating Time Typical Heating Time: 15s
- Results Storage 2000 records
- Tension Test 1.5-2.0N
- Operating Condition Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50 max wind 15m/s
- Storage Condition 0~95% relative humidity, -40~80
- Power Supply AC Input : 100-240V,DC Input 12-15V
- No. of Splice/Heating with Battery 4800mAh battery capacity, typical above 200 times(splice+heat)
- Operating Methods Button/Touch Screen
- Automatic Calibration Automatic ARC calibration by air pressure and temperature
- Electrode Life 3500 ARCS, can be extended by using an electrode grinder.
Additional Information
Weight : 8 kg
