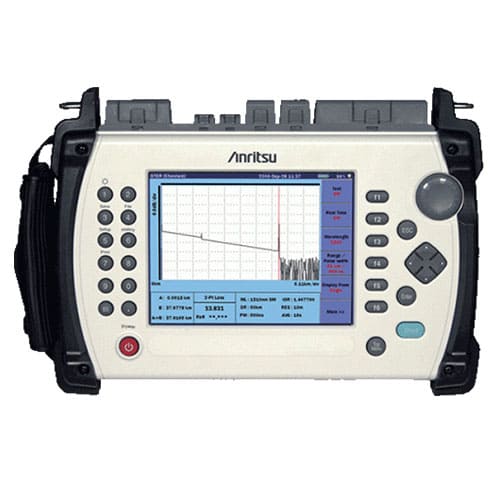

The ACCESS Master MT9083B2 features a 7-inch widescreen TFT-LCD display for use both indoors and outdoors, enhanced battery operation time (up to 12 hours) increased operating temperature range (-10°C to 50°C) and short-cut function keys.
Baseline Features:
- Ready to test in less than 15 seconds…and all day without recharging
- Specialized testing modes simplify operation
- High resolution and high dynamic range ensure thorough and complete fiber evaluation
- Intelligent analysis software identifies problem splices, connectors and even macrobends
- Rugged, sealed design provides years of service in the most challenging environments
- Test up to four wavelengths with a single unit – single mode, multimode or both
- ITU-T recommended 1650nm for in-service troubleshooting
- Verify connector quality with optional connector inspection microscope
- SCPI remote command support
- Feature offering easy graphical summary & PDF reporting
- Password protection feature for important file on-internal memory
Enhancements:
- Automated connector PASS/FAIL based on IEC 61300-3-35
- Larger (7-inch), higher resolution (800 × 400) display with LED backlight
- Longer battery operation time: Up to 12 hours
- Wider operating temperature range: -10°C to 50°C
- Lighter — only 2.6 kg (5.7 lbs)
Performance Series Features:
- Expanded dynamic range up to 42 dB
- Complete testing of PON-based FTTx networks featuring up to 1 x 64 splits
- Fast measurement speed and distance with minimal deadzone
- Exclusive, user-selectable, dual circuit design allowing unit optimization for
high resolution or enhanced range - Efficient realtime sweeping with high signal level for quick fiber verification
