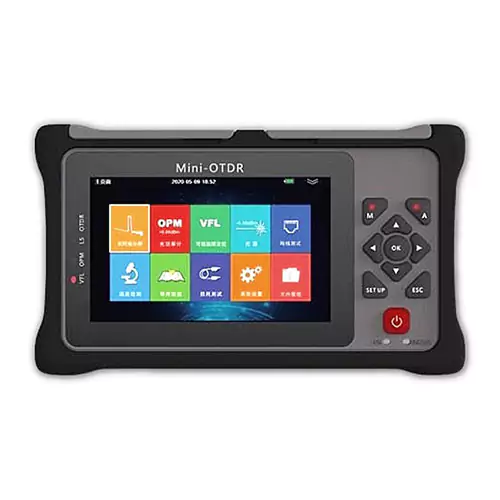

Skycom Mini OTDR T560
- 4.3-inch capacitive touch screen with full viewing , TFT 800×480 resolution
- Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
- Size: 175x105x45mm, weight: 560g (including battery)
- Working temperature: -10~+55°C, storage temperature: -20~+80°C.
Technical indicators
Model No. | Wavelength | Dynamic Range | Max. Test Range |
TOT560-A24D | 1310/1550nm | 24/22dB | 80km |
Measuring range | 100m,500m,2km,5km,10km,20km,40km,80km/90km | ||
Sampling resolution | Minimum: 0.2m | ||
Event dead zone | < 2.0m | ||
Attenuation dead zone | < 7.0m | ||
The sampling point | 64,000 point | ||
Linearity | ≤0.05dB/dB | ||
Loss threshold | 0.01dB | ||
Loss resolution | 0.001dB | ||
Range resolution | 0.01m | ||
Range accuracy | ±(0.5m+Range×3×10-5+Sampling resolution) (Excluding refractive index error) | ||
Memory | >40000 | ||
Data interface | 2 USB(Type A×1, Micro USB×1, SD card) | ||
Screen | 4.3-inch TFT-LCD (Standard distribution capacity touch screen) | ||
Battery | 3.7V/5200mAh | ||
Temperature | Working temperature:-10ºC~+55ºC; Storage temperature:-20ºC~+80ºC |
||
Humidity | ≤95%(No condensation) | ||
Size/Weight | 175x105x45mm / 0.56kg(Contain the battery) | ||
OPM | Type A:+10dBm~-70dBm;Type B:+26dBm~-50dBm | ||
VFL | 10mW,CW/2Hz | ||
LS(Laser Source) | The output power:-5dBm,Modulation frequency:CW/270Hz/1KHz/2KHz | ||
Network Cable test | Support network wire sequence testing and wire alignment |
Accessories
Standard | FC adaptor, Power adapter, Lithium battery, USB cable, Quick guide, Portable package |
Additional Information
Weight : 1 kg
